Technical Specifications
| Parameter | Range |
|---|---|
| Size Range | DN10 - DN2000 (1/2" - 80") |
| Pressure Class | 150LB - 4500LB (PN10 - PN760) |
| Temperature Range | -196°C to +650°C |
| Body Materials | WCB, WCC, WC6, WC9, C5, C12, LCB, LCC, forged A105, F11, F22, F91, F92 |
| Trim Materials | 13Cr, SS304, SS316, Stellite 6/21, Monel, 17-4PH |
| End Connections | Flanged (RF/RTJ), butt weld (BW), socket weld (SW) |
| Design Standards | API 600, ASME B16.34, GB/T 12234, GB/T 12235, NB/T 47044 |
| Testing Standards | API 598, ASME B16.34, GB/T 13927, JB/T 9092 |
Power Station Valve Product Range
Lianggu Valve Group offers 20+ power station valve models:
1. Power Station Gate Valve Series

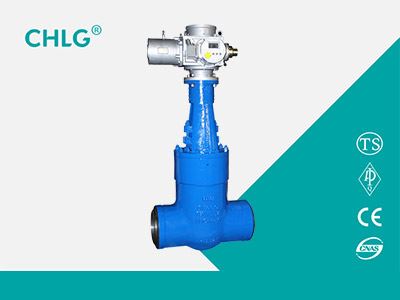

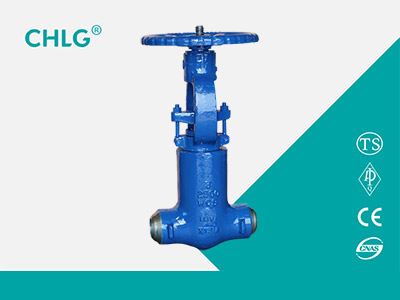

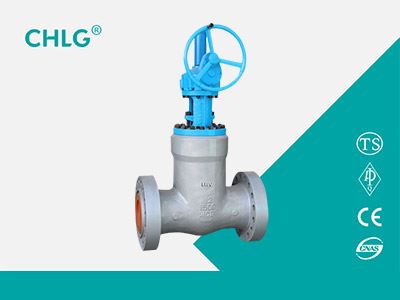

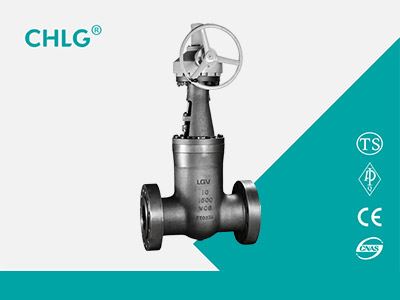

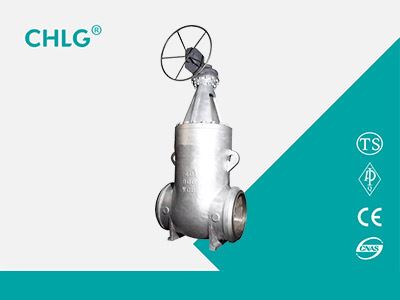

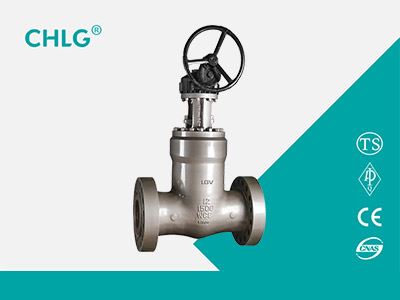

Power Station Gate Valve
Bolted bonnet cast steel gate valve for power plant main steam and reheat steam systems. API 600 compliant.

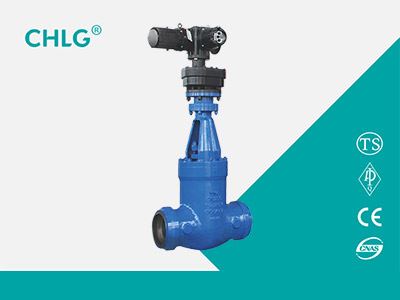

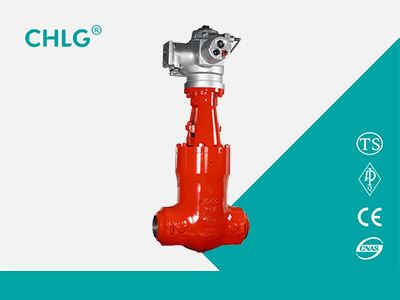

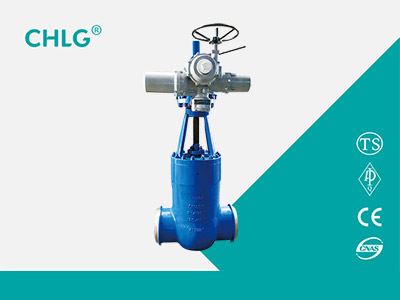

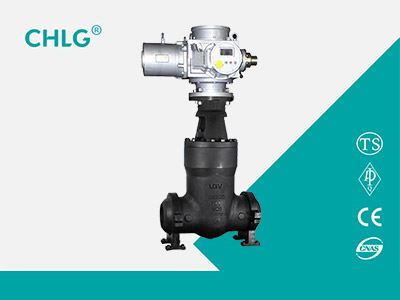

Power StationAPI 600Cast SteelElectric Power Station Gate Valve
Electric actuated power station gate valve for remote operation and control systems.

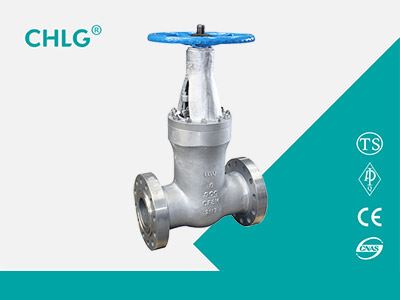

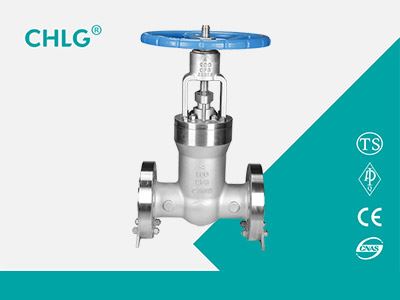

ElectricRemoteControlStainless Steel Power Station Gate Valve
Stainless steel construction for corrosive media and high-purity power plant systems.

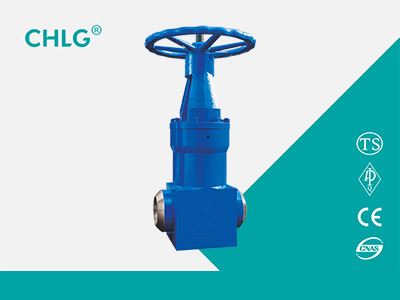

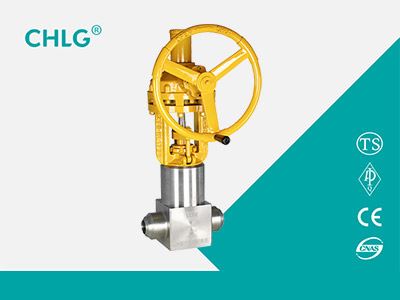

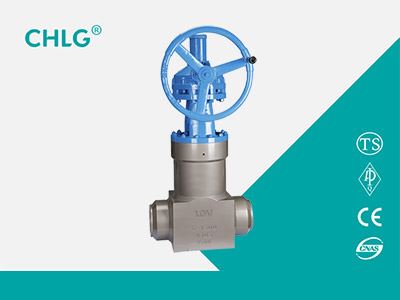

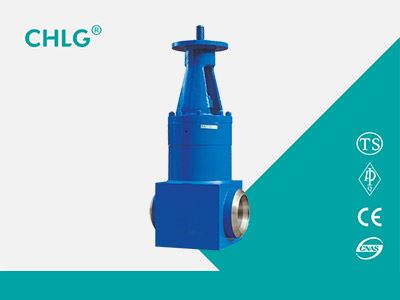

SS304SS316Corrosion ResistantForged Power Station Gate Valve
Forged steel body for high-pressure, high-temperature power plant applications up to 4500LB.
Forged Steel4500LBHigh Pressure2. Power Station Globe Valve Series

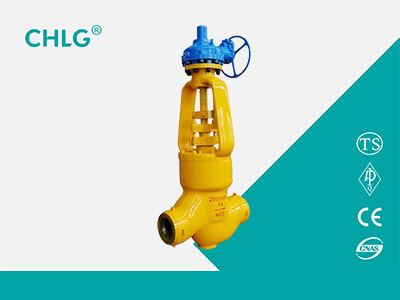

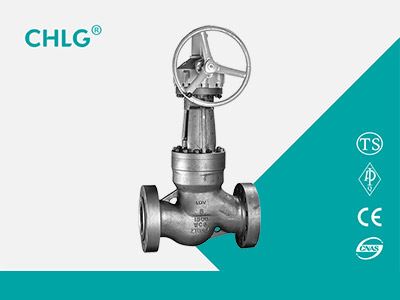

Power Station Globe Valve
Power station globe valve for throttling and regulating steam flow. High-temperature design with extended bonnet.

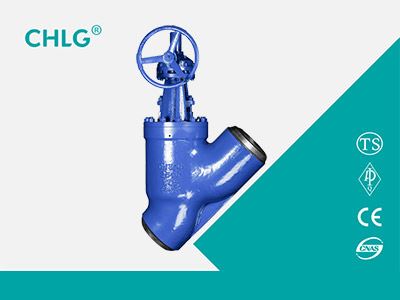

GlobeSteamHigh TempStraight Way Power Station Globe Valve
Straight-way (Z-pattern) globe valve for power plant feedwater and steam regulation.
Straight WayFeedwaterRegulationElectric Power Station Globe Valve
Electric actuated globe valve for automated steam flow control in power plants.
ElectricAutomatedSteam Control3. Power Station Check Valve Series
Power Station Check Valve
Power station check valve for preventing backflow in boiler feedwater and steam systems. Swing or lift type.
CheckBackflowFeedwaterPower Plant Applications
Main Steam System
- Main steam isolation
- Reheat steam isolation
- Steam dump valves
- Valves: Power station gate & globe valves
Feedwater System
- Boiler feed pump discharge
- Feedwater heater bypass
- Deaerator outlet
- Valves: Power station gate & check valves
Circulating Water System
- Condenser inlet/outlet
- Cooling water pump
- Valves: Butterfly valves, gate valves
Fuel Gas System
- Gas fuel shut-off
- Gas regulator station
- Valves: Ball valves, butterfly valves
Power Station Valve FAQ
What projects is Power Station Valve suitable for?
Power Station Valve is designed for high-temperature and high-pressure systems with focus on material, sealing and stability and commonly used in main steam, feedwater, drain, bypass and high-temperature high-pressure systems. If you are not sure about the model, send us the working condition first.
What happens if the wrong power station valve is selected?
The common risk is thermal cycling, pressure shock and high-temperature sealing are key selection points. Valve selection is not only about size and price; medium, pressure, temperature and standards must be reviewed together.
What information is needed to quote power station valve?
Please provide size, pressure class, material, connection, medium, temperature, quantity, operation method, standard and certificate/testing requirements.
Can power station valve be customized?
Yes. Non-standard size, special material, sealing structure, connection, actuator, inspection documents and packing requirements can be discussed by project.
How is power station valve tested before shipment?
According to standards and order requirements, shell pressure, seat sealing, appearance, dimensions and documents can be checked. ITP, NDT, material and calibration documents can also be supported.
Can project documents be provided for power station valve?
Yes. Drawings, quality plan, ITP, material certificates, inspection reports, pressure test records, NDT/calibration/certificates can be prepared according to order requirements.
What is the delivery time for power station valve?
Regular stocked models can be arranged faster. Non-standard, special material, high-pressure or batch orders depend on technical confirmation and production schedule.
Why do prices vary so much for the same power station valve?
Differences usually come from material, pressure class, sealing structure, standard, testing requirements, actuator and document package. Technical conditions should be aligned before quotation.
What is often ignored when buying power station valve?
The most ignored part is site condition. Is the medium corrosive? Does temperature fluctuate? Is operation frequent? Is third-party inspection required? All these affect selection.
What if I only know the working condition, not the model?
No problem. Send medium, pressure, temperature, size, connection standard and quantity. We can first check whether Power Station Valve is suitable.
Need Power Station Valves?
Our engineering team has supplied valves to 100+ power plant projects worldwide. API 600/6D, ASME B16.34 certified. Request a quote today.
