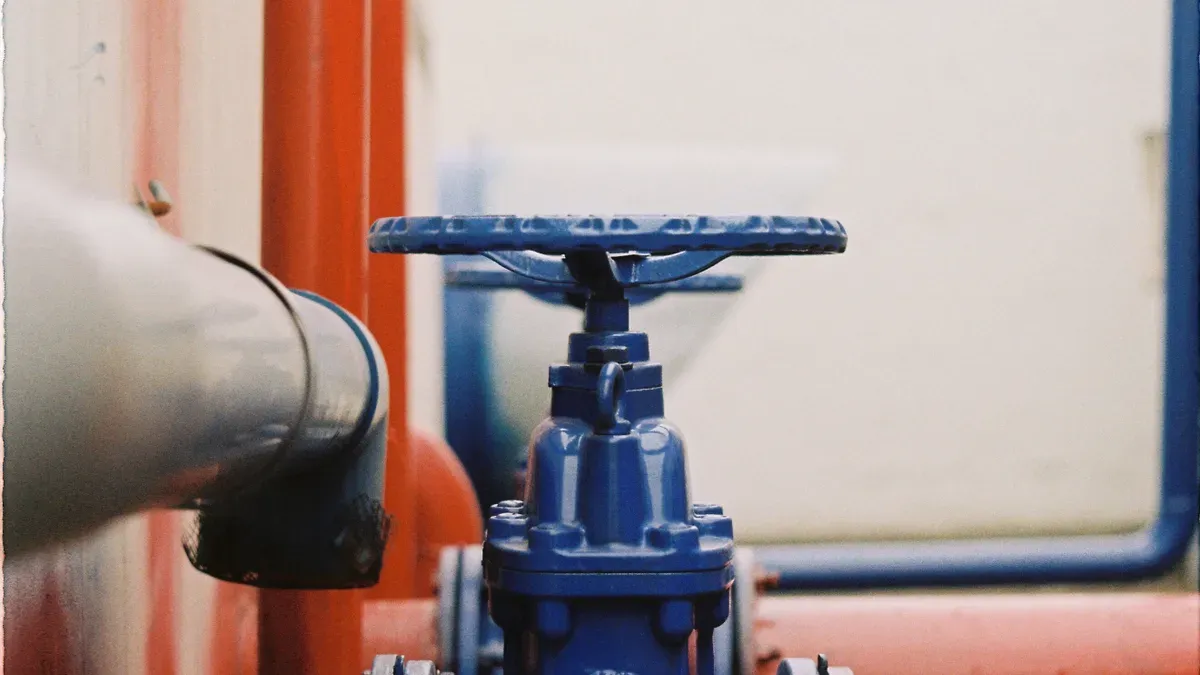

What is a BS 5163 gate valve and its main features

You use a BS 5163 gate valve to control water in pipes. This valve is made by British Standard rules. It is a good choice for drinking water and pipes underground. You get a strong product for hard jobs. Here is what makes it special:

Key Takeaways

• BS 5163 gate valves help control water flow in pipes. They work well for drinking water and sewage systems. The strong build and special seat make them last a long time. This means you do not need to replace them often. Non-rising stems help save space when you put them in. This makes them good for small or underground places. The materials and coatings stop rust and damage. This keeps the valve safe and working well in many water uses. Picking BS 5163 gate valves means water moves easily through them. This makes the system work better and saves energy costs.

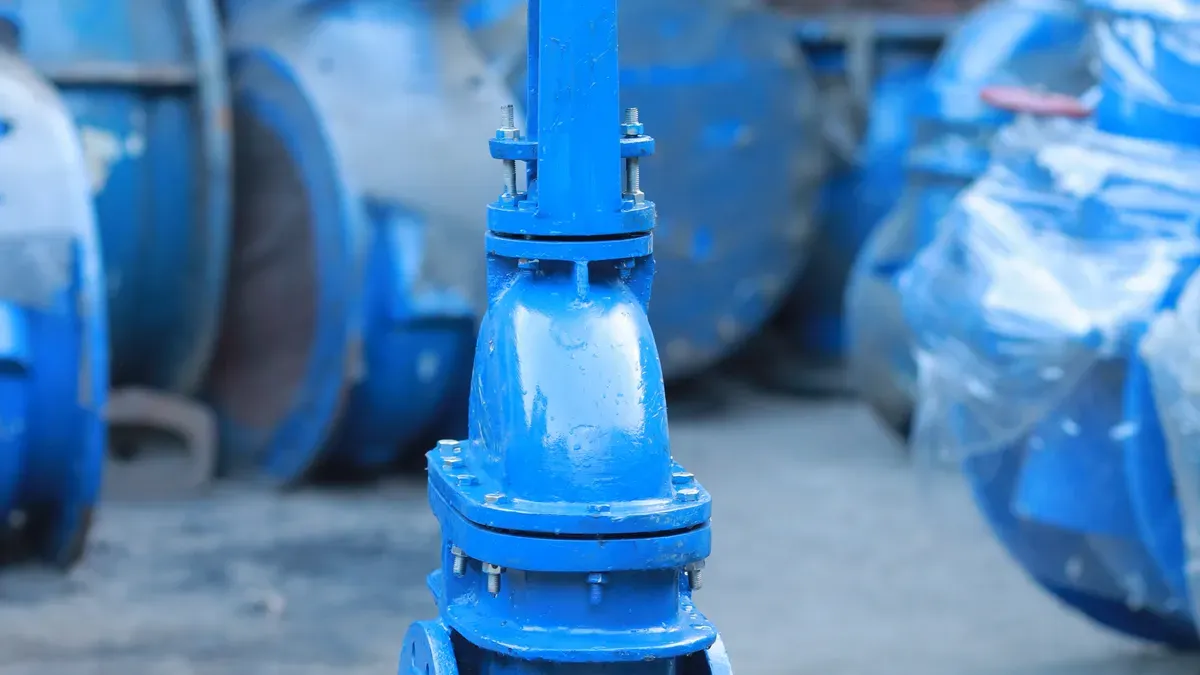

BS 5163 Gate Valve Overview

What Is a BS 5163 Gate Valve

You use a BS 5163 gate valve to control the flow of water or sewage in a pipeline. This type of valve works well in city water systems, sewage treatment plants, and other places where you need to move clean water or wastewater. The main job of this valve is to start or stop the flow of liquid. You turn a handwheel or use a lever to move the gate inside the valve. When you open the valve, the gate lifts up and lets water pass through. When you close it, the gate moves down and blocks the flow.

You will find several important parts inside these gate valves:

• Valve body: This is the strong outer shell that holds everything together.

• Gate: This part moves up and down to open or close the passage for water.

• Stem: The stem connects to the gate and helps you move it by turning the handwheel.

• Bonnet: The bonnet covers the top and keeps water from leaking out.

• Seats: These are seals on both sides of the gate that make sure water does not leak when the valve is closed.

• Actuator: This part helps you open or close the valve, either by hand or with a machine.

When you open the valve all the way, water flows freely with almost no resistance. When you close it, the seats press against the gate and stop all water from passing through. This design gives you a tight seal and helps prevent leaks.

BS5163 Standard Explained

The bs5163 standard tells you how to build and test these gate valves. You can trust that a valve made to this standard will work well and last a long time. Here are some key points about the bs5163 standard:

1. You use these valves in water supply networks and sewage systems. They work best for clean water and wastewater.

2. The standard requires a non-rising stem design. This means the stem does not move up or down when you turn the handwheel, which saves space.

3. The valve body must be made from strong materials like ductile iron or cast iron. The sealing surfaces use elastic materials such as EPDM rubber for better sealing.

4. The valve connects to pipes with flanges that follow EN1092 rules. The inside has a flat bottom to help with sealing and to stop dirt from building up.

5. The standard sets pressure levels from PN10 to PN25. Each valve must pass leak-free tests to make sure it works under pressure.

6. You get extra protection from corrosion because the valve has an epoxy resin coating. This coating also makes the valve safe for drinking water.

7. The standard requires type testing and pressure testing. Each valve comes with a test certificate that shows it passed all the checks.

You will also see that the bs5163 standard covers other details, such as the use of soft or hard seals, a special bottom seat to stop debris, and a stem with three O-rings for better sealing. The gate often has a rubber cover for extra durability. These features make bs5163 gate valves reliable and safe for many water and sewage projects.

BS 5163 Gate Valve Features

Resilient Seated Design

You get a strong seal when you use gate valves with a resilient seated design. The seat uses elastomeric materials, such as EPDM, to create a tight, leak-free seal every time you close the gate. This design helps the valve adjust to small bumps or rough spots inside the valve body or gate. You do not need to worry about leaks because the seat presses firmly against the gate. You also spend less time on maintenance because the resilient seat lasts longer and keeps working well.

• The elastomeric seat gives you a tight seal.

• The design handles small surface bumps and keeps water from leaking.

• You get a durable valve that needs little maintenance.

Material and Construction

You can trust the materials used in bs 5163 gate valve construction. The body and bonnet use ductile iron, which gives you strength and toughness. The seat uses EPDM, an elastomer that helps with sealing and durability. These materials make the valve last longer and work well in water supply systems.

The ductile iron body and EPDM seat help the valve resist damage and keep water flowing smoothly. You do not need to replace the valve often because these materials stand up to wear and tear. You also get better flow efficiency and less maintenance.

Non-Rising Stem and Sizes

You save space when you use gate valves with a non-rising stem. The stem stays inside the valve, so you can install it in tight spots or underground. You do not see the stem move up or down when you turn the handwheel. This design keeps the stem safe from damage and reduces the risk of leaks.

• The non-rising stem fits in small spaces.

• You spend less money because there are fewer exposed parts.

• The stem stays protected and lasts longer.

• You get less leakage because the stem remains enclosed.

You also get valves that meet the bs5163 standard, ISO5752, and BS4504/EN1092 flange standards. These standards make sure you get a reliable product for waterworks and fluid control.

Functional Advantages of BS5163 Gate Valves

Reliable Shut-Off and Isolation

Gate valves help you stop water in pipes. They give strong shut-off and isolation. When you use a bs 5163 gate valve, water flows easily. There is almost no drop in pressure. These valves are used as main shut-off points. The resilient-seated design makes the shut-off bubble-tight. This is important when you need to stop water or fix pipes. You can trust these valves in both high and low-pressure systems.

• Gate valves are main shut-off valves in water lines.

• You get full-bore flow and low pressure loss.

• The resilient seat gives bubble-tight shut-off and good isolation.

Corrosion Resistance

You want your valve to last in tough places. The bs5163 standard uses strong materials and special coatings. These protect against rust and corrosion. The ductile iron body is 20% stronger than regular cast iron. The valve has an epoxy coating that cuts wear by 30%. This makes it good for rough or dirty water. See the table below for details:

You also get extra protection from fusion-bonded epoxy and epoxy resin coatings. These coatings can be up to 400 μm thick. They pass tough salt spray tests. Your valve will not rust, even after long use underground or in cities.

Leak Prevention and Efficiency

You need a valve that keeps water inside pipes. The bs 5163 gate valve meets ISO 5208 Rate A. This means you see no leaks under normal use. Even after many times opening and closing, leaks stay very low. This helps you save water and keeps your system working well. The strong build and tight seal make your water network more efficient. You spend less time fixing leaks and more time getting good service.

Tip: Using bs5163 gate valves helps you stop water loss and keep high efficiency, especially underground.

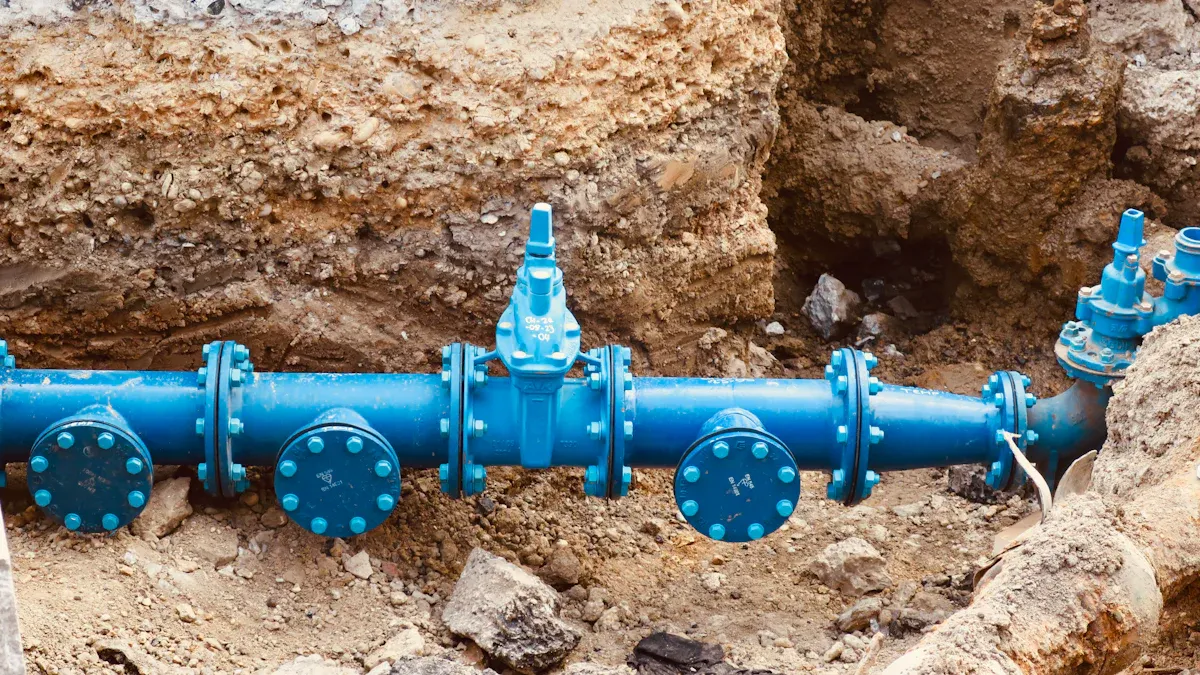

Applications of BS 5163 Gate Valves

Potable Water Systems

Gate valves are used in drinking water systems. These valves help control water that people drink. The materials are safe for humans. The bs 5163 gate valve uses ductile iron and EPDM rubber. These do not make water dirty. The valve resists rust, so it lasts longer. You want valves with NSF 61 certification. This keeps water safe and reliable. Pick trusted makers who follow the rules and AWWA guidelines. Resilient wedge gate valves are good because they resist chemicals and last a long time.

• Materials are safe for drinking water.

• Valves resist rust and chemical damage.

• NSF 61 certification means safety.

• Resilient wedge gate valves last longer.

Underground Waterworks

Gate valves are put underground to control water and sewage. You need to reach them easily for maintenance. You can turn and oil the valve from the top of the valve box. The valve box stays flat with the ground and is protected from cars. Sometimes you add an air release or vacuum breaker to lower pressure when fixing the valve. You may need to fix the outside coating if it gets scratched. These things help you care for your gate valves without digging up pipes.

• Manual operation lets you turn and oil the valve yearly.

• Valve boxes stay flat and safe.

• Air release parts lower stress.

• Coating fixes stop rust.

Industrial and Municipal Use

Gate valves are used in factories and city systems. They help control water, sewage, and other fluids in big pipes. You see them in paper mills, mines, and sewage plants. Cities use gate valves to stop water in main pipes. Factories use them to block pulp in paper mills and mine waste. Sewage plants use gate valves to control water in tanks.

Gate valves are found in water systems, factory pipes, and wastewater lines. They handle low and medium pressures. Big pipes and pump stations may need stronger valves. Ductile iron makes the gate tough for places with water surges. You get tight seals and rust resistance, so your system works well.

Tip: You can trust bs 5163 gate valves for safe water, easy care, and strong use in many places.

You use a bs 5163 gate valve when you need strong valves for water. These valves stop water well and resist rust. They are safe for drinking water. The valve lasts a long time and does not slow water much. The gate design saves energy and keeps your system working well.

When picking gate valves, choose strong materials and a wedge gate. Make sure you install them the right way. You can trust bs 5163 gate valves for water and fluid control jobs.

FAQ

What does "resilient seated" mean in a BS 5163 gate valve?

You get a soft, flexible seal made from rubber or elastomer. This seal presses tightly against the gate. It helps stop leaks and makes the valve last longer.

Can you use a BS 5163 gate valve for hot water?

You should not use this valve for hot water. It works best with cold or room-temperature water. High heat can damage the rubber seat and shorten the valve’s life.

How do you know if a BS 5163 gate valve is safe for drinking water?

Look for NSF 61 or WRAS certification. These marks show the valve uses safe materials. You can trust it for potable water systems.

What sizes do BS 5163 gate valves come in?

You can pick the right size for your pipeline. Most waterworks use sizes between 4" and 24".
