Clean the ball

What is a CIP Cleaning Ball?

A CIP (Clean-in-Place) cleaning ball, also known as a spray ball or tank washing nozzle, is a specialized device installed inside process vessels, tanks, and reactors to distribute cleaning fluid (water, detergent, or sanitizer) across all internal surfaces. Cleaning balls are essential components in automated CIP systems used in pharmaceutical, biotechnology, food, dairy, and beverage industries.

Cleaning balls are manufactured from stainless steel 304 or 316L with precisely drilled orifices that create a spray pattern covering the entire tank interior. They operate using the pressure of the CIP supply fluid — fixed spray balls create a static pattern while rotary spray balls use the fluid pressure to spin, creating a dynamic 360-degree cleaning action.

Sanitary butterfly valveTank bottom valveAngle seat valveQuick install ball valveSampling valvediaphragm valvefast ball valveSight glassThe check valveClean the ball
><

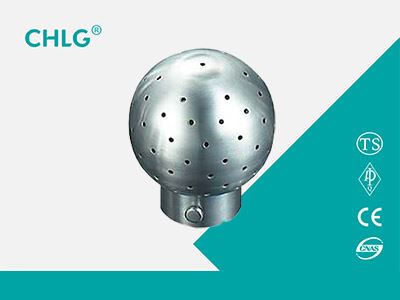

bayonet fixed cleaning ball

bayonet fixed cleaning ball

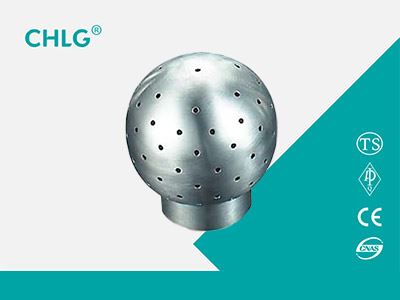

welded fixed cleaning ball

welded fixed cleaning ball

clamp rotary cleaning ball

clamp rotary cleaning ball

common internal thread cleaning ball

common internal thread cleaning ball

cleaning ball

cleaning ball

cleaning ball

cleaning ball

Cleaning Ball Types

Fixed Spray Ball

  • Static spray pattern
  • Simple, no moving parts
  • Lower pressure requirement
  • For smaller tanks and simple geometries

Rotary Spray Ball

  • 360-degree dynamic cleaning
  • Fluid-driven rotation
  • Higher cleaning impact
  • For larger tanks and complex geometries

Rotary Jet Cleaner

  • High-impact concentrated jets
  • Gear-driven slow rotation
  • Maximum cleaning power
  • For heavily soiled tanks and reactors

Technical Specifications

ParameterRange / Standard
Size RangeDN25 - DN100 (1" - 4")
Body MaterialStainless Steel 304 (1.4301), 316L (1.4404)
Surface FinishRa ≤ 0.8μm; mirror polished
Operating Pressure1 - 3 bar (fixed); 2 - 10 bar (rotary)
Flow Rate1 - 30 m3/h (depending on size and type)
Temperature Range-20°C to +95°C (standard); up to +140°C (high temp)
Connection TypesWeld, Clamp (Tri-Clamp), Thread, Bayonet
Spray Coverage180° - 360° (depending on model)
Mounting PositionTop, side, or bottom entry
CertificationsFDA, 3A, CE, ISO 9001

Industry Applications

  • Pharmaceutical: API reactor cleaning, formulation tank CIP, WFI tank sanitization — 316L electropolished
  • Biotechnology: Fermenter cleaning, cell culture vessel CIP, chromatography column wash — Rotary for complex internals
  • Dairy Processing: Milk silo cleaning, yogurt tank CIP, cheese vat wash — Fixed for simple geometries
  • Beverage Production: Syrup tank cleaning, mixing vessel CIP, storage tank wash — FDA compliant materials
  • Food Processing: Cooking kettle cleaning, mixing tank CIP, sauce vessel wash — High temperature capable
  • Cosmetics: Cream mixer cleaning, lotion tank CIP, shampoo vessel wash — Corrosion resistant 316L
FDA Compliant 3A Certified CE Marked ISO 9001

Need a CIP Cleaning Ball Solution?

Our sanitary equipment specialists can recommend the optimal cleaning ball type, spray pattern, and connection for your tank cleaning requirements. Custom spray patterns and sizes available.
