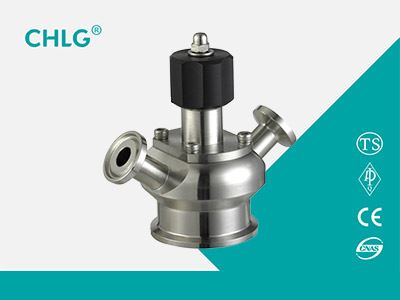

---.jpg)

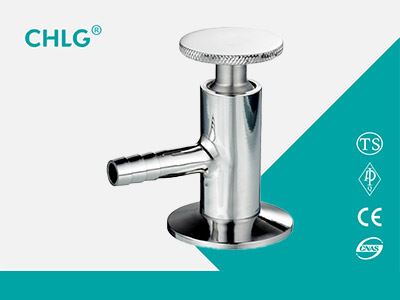

---.jpg)
---.jpg)
Key Design Features
Aseptic Design
- Steam barrier for SIP capability
- Closed-system sampling
- No external contamination risk
Minimal Dead Space
- Compact body design
- Easy CIP/SIP cleaning
- No product residue retention
Representative Sampling
- Accurate product representation
- Adjustable sample volume
- Repeatable extraction process
Technical Specifications
| Parameter | Range / Standard |
|---|---|
| Size Range | DN8 - DN25 (1/4" - 1") |
| Body Material | Stainless Steel 304 (1.4301), 316L (1.4404) |
| Surface Finish | Ra ≤ 0.8μm inner surface; mirror polish |
| Pressure Rating | PN10 / PN16 (10 bar / 16 bar) |
| Temperature Range | -20°C to +135°C (EPDM); -20°C to +200°C (PTFE) |
| Seal Materials | EPDM, Silicone, PTFE (FDA compliant) |
| Connection Types | Weld, Clamp, Thread |
| Operation | Manual push/pull, twist handle |
| Sample Volume | Adjustable, typically 5ml - 50ml |
| Certifications | FDA, 3A, EHEDG, CE, ISO 9001 |
Industry Applications
- Pharmaceutical: API batch sampling, formulation QC, WFI verification — Aseptic steam barrier design
- Biotechnology: Cell culture sampling, fermentation monitoring, purity testing — Closed system aseptic
- Dairy Processing: Milk quality control, yogurt consistency checks, cheese pH monitoring — Standard sanitary
- Beverage Production: Juice Brix testing, beer gravity checks, soft drink carbonation — Quick clean design
- Food Processing: Sauce viscosity, soup salt content, condiment pH — FDA compliant seals
- Cosmetics: Cream consistency, lotion pH, shampoo viscosity — Corrosion resistant 316L
FDA Compliant
3A Certified
EHEDG
CE Marked
ISO 9001
Need a Sampling Valve Solution?
Our sanitary valve specialists can recommend the optimal sampling valve for your quality control and product verification requirements. Aseptic and standard configurations available.
